C Channel Machine
- C Channel Machine : C channel machine is a type of manufacturing equipment used to produce C-shaped channels made of steel or galvanized steel. These channels are commonly used in the construction industry for building walls, roofs, and other structures. The C channel machine works by feeding a coil of steel or galvanized steel through a series of rollers, which gradually bend and shape the metal into the desired C channel shape. The machine can be programmed to produce channels of various sizes and dimensions, depending on the specific needs of the project.
- C and U channel 2 in 1 roll forming machine is popular in many countries. It has a common thickness between 0.3 – 0.6 mm and a common speed of 10-20 m/min. With a servo motor, the speed can max reach to 30 – 50 m/min. It’s widely used for ceiling construction and works with other machines like angle bead machine, u channel machine, omega profile machine and t grid machine.

U Channel Machine
U channel roll forming machine is a specialized piece of equipment used in the manufacturing and fabrication industry to produce U-shaped channels or profiles from metal coils or sheets. These U-shaped channels are commonly used in construction, automotive, and various other industries for applications such as framing, support structures, and more. The process of a U channel machine typically includes:
- Material feeding: The process begins with a coil or sheet of metal, usually steel or aluminum, which is placed on a decoiler or uncoiler. The material is then fed into the roll forming machine.
- Roll forming: The heart of the machine consists of a series of rollers that gradually bend and shape the metal strip into the U-shaped profile. Each set of rollers is carefully designed to achieve the desired dimensions and features of the U channel.
- Cutting: Once the metal strip has been formed into the U shape, a cutting mechanism, such as a flying cut off or a post-cut shear, is used to cut the profile to the desired length. This ensures that the final product is the correct size.
- Post-processing: Depending on the specific requirements, additional post-processing steps may be included, such as punching holes, embossing, or adding other features to the U channel.
- Stacking or packaging: After the U channel has been formed, cut, and any necessary post-processing steps have been completed, the finished pieces are typically stacked, bundled, or packaged for easy handling and transportation.

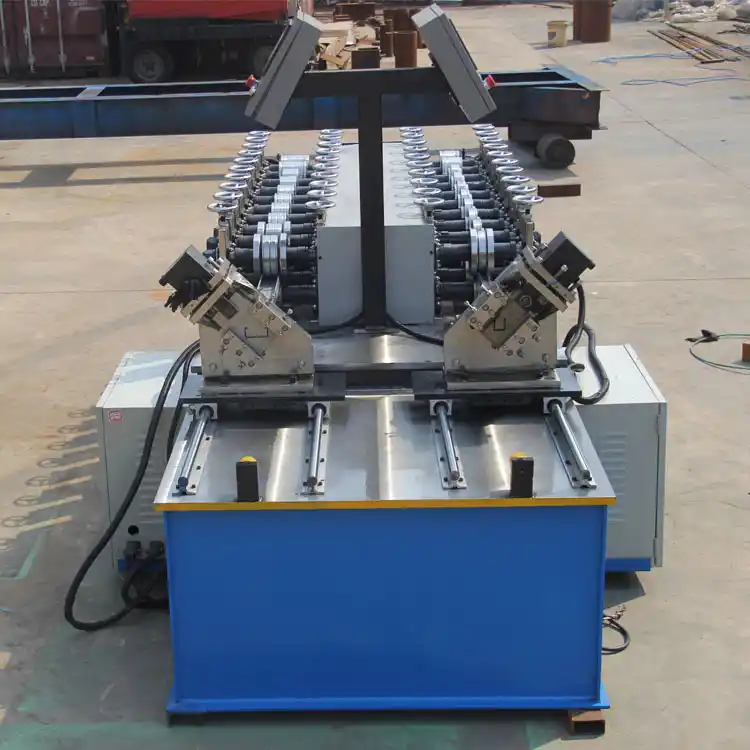

2 in 1 Channel Machine
The 2 in 1 channel machine is designed to save space and cost. It means one machine can produce two shapes of products. For example, there are 2 in 1 roll forming machines like omega profile and u channel 2 in 1 roll forming machine, omega profile and angle bead 2 in 1 roll forming machine, c channel and angle bead 2 in 1 roll forming machine and so on. C and U channel 2 in 1 roll forming machine has a work flow of decoiler – roll forming machine – PLC control box – hydraulic cutter – run out table. It has a feeding width according to the customer’s drawing, with a thickness of 0.3 – 0.6 mm. The decoiler has a weight capacity of 3 tons. The main body has 12 – 14 rows of roller stations.
